A fuselage warps when its two halves cure at slightly different angles. A building jig fixes the angle before you glue, not after. This guide covers why warps happen, what a jig should hold square, and how to check the result.
Why fuselages warp during assembly
Most fuselages are two plastic or resin halves, glued along a seam that runs the length of the model. Held by hand, that seam can shift while the glue cures, even by a fraction of a millimetre.
The shift is rarely dramatic. A slight twist along the spine. A wing that sits a touch high on one side. A tail that leans off the vertical. None of these mistakes show up until the paint goes on. By then they're part of the model.
Warping isn't usually a building error. It's a support problem. Nothing was holding the fuselage still enough, for long enough, while the glue found its final shape.
The three alignment points every jig should hold
A straight build comes down to three things staying fixed at once.
The centerline. The spine of the fuselage should run straight from nose to tail, with no twist along its length. This is the alignment a basic jig frame is built to hold first.
The dihedral, or transverse angle. Wings rarely sit flat. Most kits call for a specific upward angle where the wing meets the fuselage, and that angle needs to match on both sides. The BB-03 add-on module locks this angle in place for kits in scale 1/72 to 1/32, so both wings cure at the same setting.
Squareness at the root. Where a wing or tail plane meets the fuselage, the joint should sit at a true right angle, not just look close by eye. This is where hand-holding fails most often, since a slight lean at the root is hard to spot until the model is upright.
A jig holds all three at once, because the frame itself is the reference, not your hand.
Step by step: dry-fit in the jig before glue

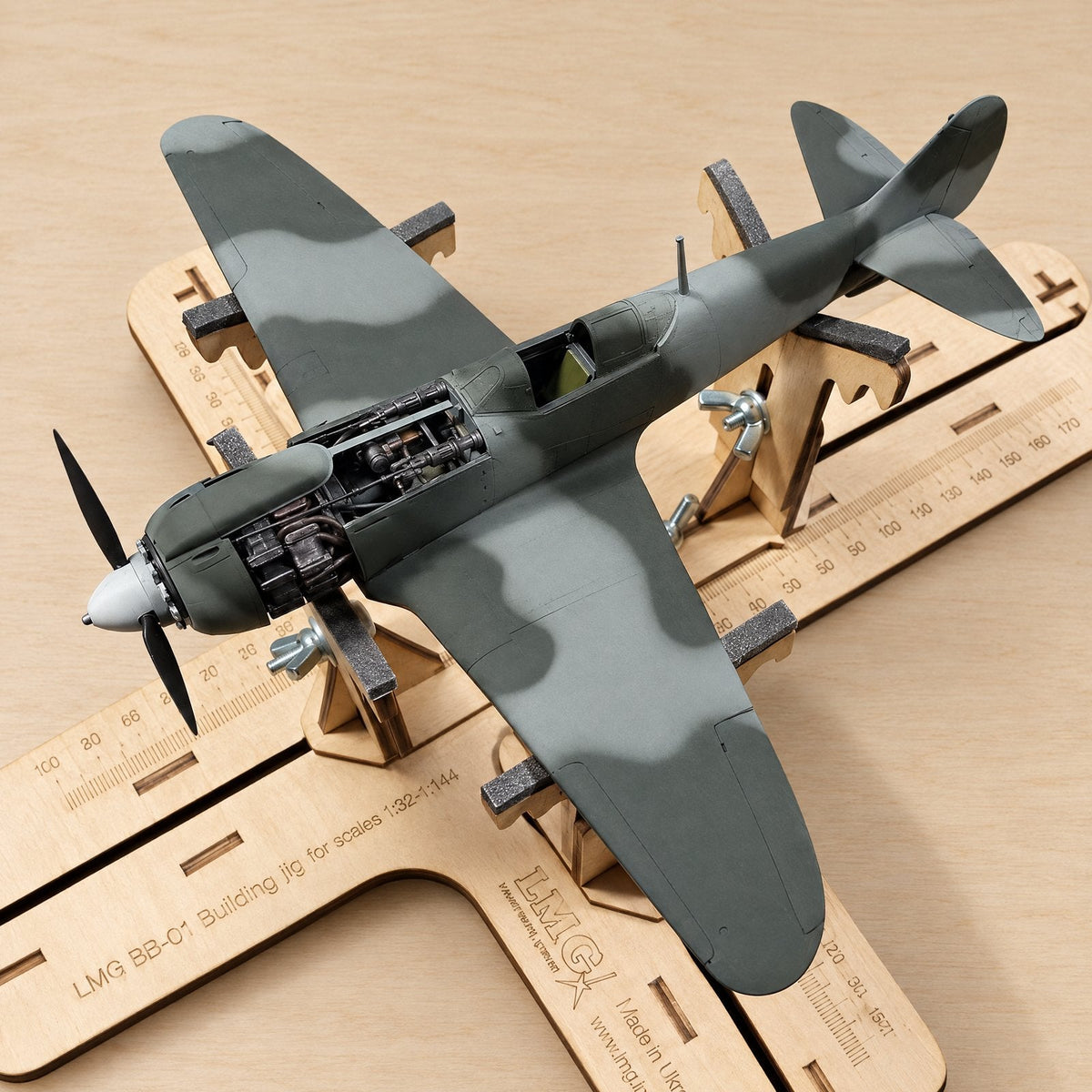

- Test-fit the fuselage halves in the airplane building jig (BB-01) before any glue touches the parts.
- Check that the halves sit flush along the whole seam, with no gap at the nose or tail.
- Seat the wings and confirm the dihedral angle looks even on both sides.
- Add the BB-03 module if the kit calls for a specific transverse angle, or the BB-02 module for biplane strut assemblies.
- Once the dry-fit looks right, apply your kit's usual cement (plastic cement, CA or epoxy — see your kit instructions) and leave the model in the jig, undisturbed, until it cures.
Dry-fitting first catches most problems before they're permanent. A gap or lean is easy to fix with the parts loose. It's much harder once the glue has set.
Checking straightness: eyeball vs square
Most builders check alignment by eye, sighting down the fuselage from the nose or the tail. That works for obvious twists, but it misses small ones, especially on a symmetrical shape where both sides look similar even when they're not.
A small engineer's square, held against the fuselage spine and the wing root, catches what the eye misses. So does turning the model and checking it from more than one angle. This is where a rotary table earns its place. The BB-04 pairs with the BB-01 and other LMG jigs, so you can rotate the model in place and check every side without lifting it out of the frame.
When a mini jig (1/72) is enough vs full-size
Not every build needs the full BB-01 frame. For small 1/72 kits, a dedicated mini building jig can hold the same alignment points in a smaller footprint. One mini jig version (BB-43) goes together without glue.
For larger 1/32 kits, a full-size mini jig option exists too, with a wider working field to match the bigger parts. The right choice comes down to kit size, not personal preference. A frame that's too small will crowd the parts. One that's too large won't grip them firmly enough to hold the angle.
See How to Hold a Model While Building for the basics of hands-free assembly, and Building Jig by Scale for a full scale-by-scale breakdown.
FAQ
Why does my fuselage look straight but the wings don't match?
The centerline and the dihedral are two separate alignments. A straight spine doesn't guarantee an even wing angle on both sides. Check them separately, ideally with a jig that fixes both at once.
Can I fix a warp after the glue has cured?
Sometimes, with gentle heat and pressure, but the result is rarely as clean as getting it right the first time. A dry-fit in a jig before gluing is the more reliable path.
Does the dihedral angle matter on every kit?
Most aircraft kits call for some wing dihedral, though the exact angle varies by model. The BB-03 module is built to hold that angle steady while the glue sets.
What's the difference between the BB-01 and a mini jig?
The BB-01 covers the 1/144 to 1/32 range in one frame. A mini jig is sized for a narrower range, usually 1/72 or 1/32, with a smaller working field for smaller kits.
